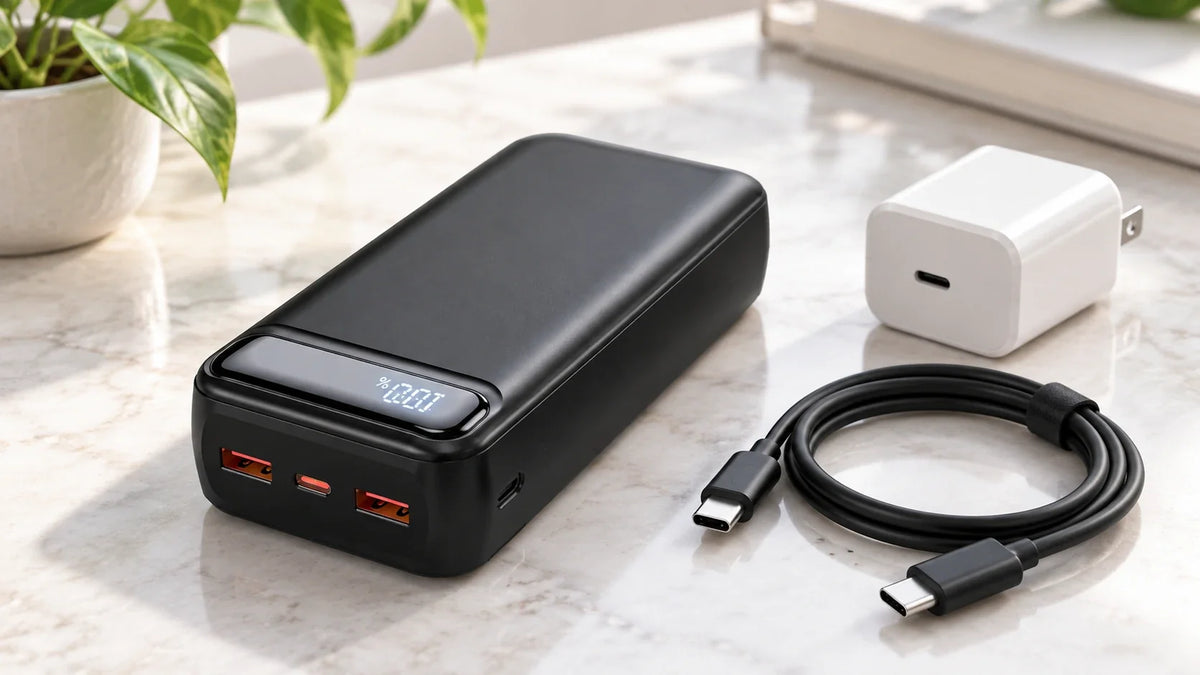

How to Charge a Power Bank: A Simple Step-by-Step Guide
To charge a power bank, connect a compatible USB cable to its input port (usually USB-C), plug the other end into a suitable wall charger, and check the LED lights or digital display. When the indicators show that charging is complete, disconnect the charger.
For most power banks, the process takes five simple steps:
-
Find the input port marked IN, INPUT, or IN/OUT.
-
Check the input rating and choose a compatible charging cable and wall adapter.
-
Connect the power bank to the wall charger and switch on the power source.
-
Check the battery indicator to confirm that charging has started.
-
Disconnect when full according to your model's charging instructions.
A power bank may take a few hours or much longer to recharge, depending on its battery capacity and supported input power. A 22.5W output rating, for example, does not necessarily mean the power bank itself can recharge at 22.5W.
This guide explains how to charge a power bank correctly, estimate charging time, understand charging indicators, and troubleshoot common problems.
How Do You Charge a Power Bank Step by Step?
Charging a power bank correctly requires three things: a working input port, a compatible cable, and a suitable power source. Most modern models accept charging through USB-C, while some use Micro-USB or an integrated input cable. Follow the steps below, and always check the manufacturer's specifications when the port layout or charging behavior is unclear.
Step 1: Find the Power Bank's Charging Input
Look at the ports on your power bank.
The charging input is usually labeled:
-
IN / INPUT: Receives power to recharge the power bank.
-
OUT / OUTPUT: Sends power to another device.
-
IN/OUT: Supports both receiving and delivering power.
USB-C ports often support bidirectional charging, but not every USB-C port does.
For example, the Avepower 006 5000mAh Power Bank has a USB-C input and two USB-A outputs. The USB-C input is used to recharge the power bank, while the USB-A ports are designed to charge other devices.
Avepower 006 5000mAh Power Bank with Dual USB Output
Step 2: Choose the Right Cable and Wall Charger
Check the power bank's input specifications on the product label or in its manual.
Common examples include:
| Input Specification | Maximum Input Power |
|---|---|
| 5V/1A | 5W |
| 5V/2A | 10W |
| 5V/3A | 15W |
| 9V/2A | 18W |
| 12V/1.5A | 18W |
| 9V/3A | 27W |
These are electrical power calculations, not promises that every charger and power bank can operate at every listed setting.
For example, 9V × 2A = 18W. Both the wall adapter and power bank must support a compatible charging mode to use that setting.
Use an undamaged cable and a reliable USB charger that meets the power bank manufacturer's requirements.
Step 3: Connect the Power Bank to a Power Source
Insert the charging cable into the designated input port and connect the other end to a compatible wall charger.
Place the power bank on a stable, dry surface with adequate ventilation.
A compatible wall charger is generally preferable to a low-power computer USB port when faster charging is needed.
Avoid charging on bedding, under pillows, or in direct sunlight.
Step 4: Confirm That Charging Has Started
Most power banks use flashing LED indicators or a digital battery display to show charging progress.
Depending on the model, you may see:
-
Blinking indicator lights
-
A changing battery percentage
-
A charging symbol
-
A sequence of illuminated LEDs
If there is no response, check the charger, cable, port selection, and power source before assuming the battery has failed.
Step 5: Disconnect When Charging Is Complete
When the indicators show that the power bank is fully charged, disconnect it from the charging adapter.
Modern power banks commonly include charging-control circuitry, but avoiding unnecessary extended time at a full charge—especially in warm conditions—is a sensible battery-care practice.
Follow the product manual if its indicator behavior differs from the examples above.
Which Port Should You Use to Recharge a Power Bank?
The correct charging port depends on the power bank's design, not simply the connector shape. Many current models use USB-C for input and output, while others have dedicated Micro-USB inputs or integrated USB charging cables. Check the port label and input specification before connecting a charger to avoid using an output-only connection.
Common Power Bank Port Types
| Port or Connection | Typical Function | Can Recharge the Power Bank? |
|---|---|---|
| USB-C labeled IN | Charging input | Yes |
| USB-C labeled IN/OUT | Bidirectional charging | Yes |
| USB-C labeled OUT | Device charging output | No, unless otherwise specified |
| Micro-USB labeled IN | Charging input | Yes |
| USB-A labeled OUT | Device charging output | Usually no |
| Built-in USB charging input cable | Charging input | Yes, on supported models |
| Built-in device output cable | Charges connected devices | Only if bidirectional input is specified |
The important distinction is input versus output.
For example, the Avepower DX273 Power Bank lists three ways to recharge the unit: USB-C input, Micro-USB input, and a built-in USB input cable.
Its published input specifications include:
-
USB-C: 5V/3A, 9V/2A, or 12V/1.5A
-
Micro-USB: 5V/2A, 9V/2A, or 12V/1.5A
-
Built-in USB input cable: 5V/2.4A
Avepower DX273 50000mAh Power Bank with Built-In Cables
Can You Charge a Power Bank With a Phone Charger?
Yes. A compatible USB wall charger can usually recharge a power bank, including many USB-C phone chargers. The important factors are supported charging voltage, protocol, cable capability, and the power bank's maximum input rating. A higher-rated USB-C PD adapter does not automatically force its maximum wattage into a properly designed compatible power bank.
Does a 65W Charger Damage an 18W Power Bank?
A compliant USB-C Power Delivery charger and power bank negotiate a supported power configuration.
If a power bank accepts up to 18W, connecting it to a compatible 65W USB-C charger does not make it recharge at 65W.
Its input electronics limit the power according to the supported configuration and operating conditions.
However, compatibility should never be assumed for damaged, counterfeit, defective, or non-compliant charging equipment.
What Charger Should You Choose?
| Power Bank Input | Suitable Charger Example | Important Condition |
|---|---|---|
| 5V/2A, 10W | 10W USB charger | Must provide 5V/2A |
| Up to 18W USB-C PD | Compatible 18W, 20W, or higher-rated PD charger | Must share a supported voltage/power profile |
| Up to 30W USB-C PD | Compatible 30W or higher-rated PD charger | Power bank and cable must support the mode |
| Up to 65W USB-C PD | Compatible 65W adapter and suitably rated cable | Verify the required voltage, current, and cable capability |
How Long Does a Power Bank Take to Fully Charge?
Power Bank Charging Time Comparison
| Nominal Capacity | Assumed Energy | Example Input Power | Ideal Time Lower Bound |
|---|---|---|---|
| 5000mAh | 18.5Wh | 10W | 1.85 hours |
| 10000mAh | 37Wh | 10W | 3.70 hours |
| 10000mAh | 37Wh | 18W | 2.06 hours |
| 20000mAh | 74Wh | 18W | 4.11 hours |
| 20000mAh | 74Wh | 30W | 2.47 hours |
Calculation Example: 20000mAh at 18W
Assume:
-
Nominal capacity: 20000mAh
-
Nominal cell voltage: 3.7V
-
Maximum supported input: 18W
First, calculate energy:
20000 × 3.7 ÷ 1000 = 74Wh
Then calculate ideal time:
74Wh ÷ 18W = 4.11 hours
How Do You Know When a Power Bank Is Fully Charged?
Most power banks indicate charging progress through LED lights or a digital percentage display. On a common four-LED design, blinking typically indicates charging in progress and four steady lights often indicate full charge. Digital displays may show 100%, but exact indicator behavior is model-specific and should be checked against the manufacturer's instructions.
Common LED Indicator Meanings
| Indicator Behavior | Common Meaning | What to Do |
|---|---|---|
| One LED flashing | Charging at a relatively low battery level | Continue charging |
| Two LEDs illuminated, another blinking | Charging is progressing | Continue charging |
| Four LEDs steady | Often fully charged | Verify the manual and disconnect when complete |
| Digital display increasing | Battery charge is rising | Monitor normally |
| Digital display at 100% | Usually full | Check for normal completion |
| No indicator response | Possibly no input power or a connection issue | Check the source, cable, and input port |
How Should You Charge a Power Bank for the First Time?
A new lithium-ion power bank generally does not need an arbitrary eight- or twelve-hour initial charge. Check its remaining capacity, inspect the cable and charging ports, and recharge according to the manufacturer's instructions. Charging it fully before a trip can be convenient, but a lengthy first-charge ritual is not a universal requirement for modern batteries.
First-Time Charging Checklist
-
Check the product and cable for visible damage.
-
Read the input specifications.
-
Identify the correct charging connection.
-
Use a compatible wall adapter.
-
Monitor the indicator during charging.
-
Disconnect once the battery reaches the desired charge level or the manual specifies completion.
If your new power bank arrives partly charged, you can generally use it without first draining it to zero.
There is no need to intentionally perform a deep discharge before the first recharge unless the manufacturer explicitly provides a model-specific diagnostic or calibration procedure.
Should You Always Charge to 100%?
Charging to 100% can be useful when you need maximum available energy for a long journey.
For routine use, partial charging is acceptable. Avoid prolonged exposure to high temperatures and extended storage in a fully discharged state.
Keep Your Power Bank Ready for Every Day
The best charging routine is simple: use the correct input port, choose a compatible charger, follow the battery indicators, and avoid conditions that cause unnecessary heat or damage. Matching the power bank's actual input specifications is more useful than choosing a charger solely because it advertises a higher wattage.
At Avepower, we focus on portable charging solutions for everyday use, work, travel, and outdoor activities.
Our product range includes compact power banks with USB-C charging inputs, integrated-cable options, and high-capacity models with digital battery displays.
Explore our portable power bank collection to compare model-specific charging inputs, outputs, and features.
Need help understanding your product's charging specification or troubleshooting a charging issue?
Contact Avepower Support with your model number, charger specification, and the problem you are experiencing.
FAQ
Can You Charge a Power Bank With USB-C?
Yes. If the power bank has a USB-C port marked IN or IN/OUT, connect it to a compatible USB-C charger and cable. Confirm charging through the model's indicators.
Can You Charge a Power Bank With a USB-A Charger?
Yes, if the USB-A wall adapter can supply a compatible input voltage and you use a suitable cable connecting the adapter to the power bank's designated charging input.
An output-only USB-A port on the power bank itself normally cannot recharge the battery.
How Long Does It Take to Charge a 10000mAh Power Bank?
It depends on the supported input power. Assuming 37Wh of nominal battery energy, the ideal calculation is approximately 3.7 hours at 10W or 2.06 hours at 18W. Actual full charging takes longer.
How Long Does It Take to Charge a 20000mAh Power Bank?
With an illustrative 74Wh battery energy and 18W input, the ideal minimum is approximately 4.11 hours. Actual time is longer because of losses and charging taper.
Can You Charge a Power Bank Through a Laptop USB Port?
Usually yes, if the laptop provides a compatible USB power output and the power bank supports charging through that connection. A low-power laptop USB port may charge significantly more slowly than a suitable wall adapter.
Can You Use a 65W Charger for an 18W Power Bank?
A properly functioning, compatible USB-C PD system negotiates an appropriate supported power setting. An 18W-rated power bank will not automatically draw 65W merely because the charger is rated for that maximum.
Should You Drain a Power Bank Before Charging It?
No. Modern lithium-ion power banks do not ordinarily require complete discharge before recharging. Recharge as needed and follow the manufacturer's operating instructions.
Can You Charge a Power Bank While Using It?
Only when the product supports pass-through charging. This feature varies by model and may increase heat or change charging speed. Check the specific product specifications before using it.
